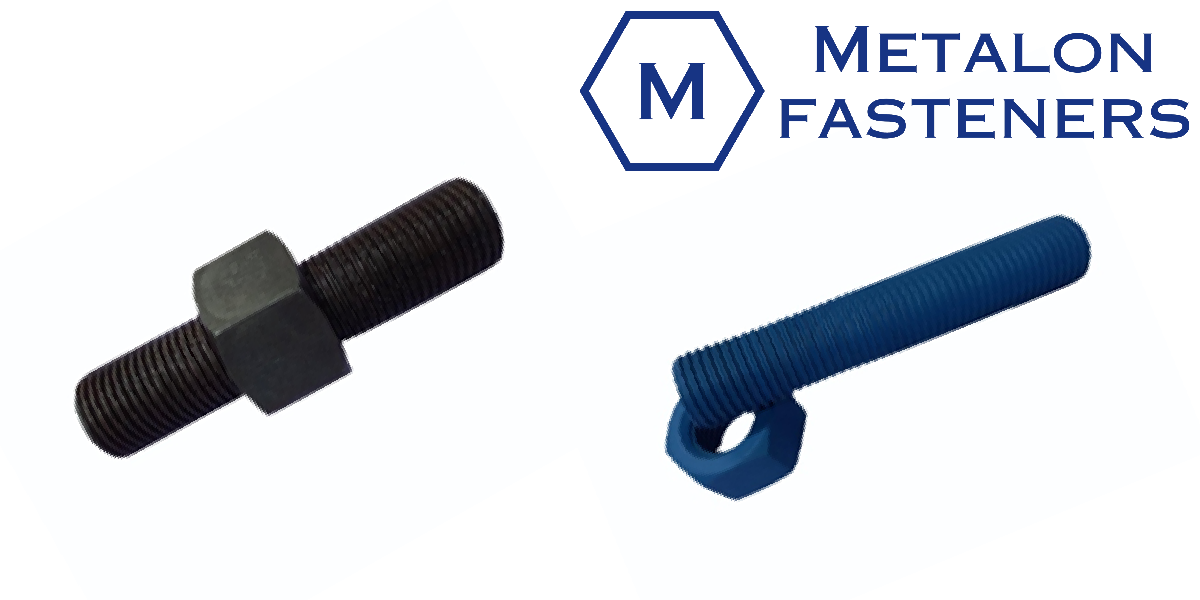

Full Threaded Stud

Full threaded studs are manufactured by using either bright bars or black rolled bars. Thread forming is done by process of either thread rolling or thread cutting. Threading confirms to ASME B1.1 Class 2A for UN & UNC threads.

Sizes:-

5/8” x 11 UNC	3/4” x 10 UNC	7/8” x 9 UNC	1” x 8 UNC
1-1/8” x 8 UN	1-1/4” x 8 UN	1-3/8” x 8 UN	1-1/2” x 8 UN
1-5/8” x 8 UN	1-3/4” x 8 UN	1-7/8” x 8 UN	2” x 8 UN
2-1/4” x 8 UN	2-1/2” x 8 UN	2-3/4” x 8 UN	3” x 8 UN

Material Grades

ASTM A193 Gr B7 & ASTM A194 Gr 2H
ASTM A193 Gr B7M & ASTM A194 Gr 2HM
ASTM A320 Gr L7 & ASTM A194 Gr 7
ASTM A320 Gr L7M & ASTM A194 Gr 7M

Coating:

Black finish, Xylan coating, PTFE coating, or as required.

Marking & Traceability:

Marking as per ASTM requirements.
Marking & traceability as per API 20E & API 20F for each lot.

Documentation, Traceability & Quality control records:

Raw material Mill TC
UT report
MPI report (if applicable)
Heat treatment details with graph
Mechanical & Chemical test report
Pre dispatch inspection report
